The problem Nova solves: IVC
To efficiently prove repeated application of a step function,y = F ^(k)^(x) = F(F(F(x))), a proof must show:
- each step was computed correctly, and
- the prover’s state already accounts for the correctness of all prior steps.
That’s Incrementally Verifiable Computation (IVC): the prover maintains an artifact that grows logically with the number of steps, while remaining compact and easy to verify.
Nova achieves IVC via a non-interactive folding scheme over committed relaxed R1CS. At each step, the prover proves (1) the current incremental computation and (2) a fold that incorporates the previous step’s R1CS instance into a running relaxed-R1CS accumulator. The resulting verifier circuit is constant-sized, and its dominant cost is two group scalar multiplications.
On the prover side, each step is dominated by two multiexponentiations. Importantly, Nova does not require a trusted setup and does not use FFTs, which makes it practical to instantiate over a wide range of elliptic-curve cycles (as long as discrete log is hard).
Folding scheme for Committed Relaxed R1CS
What “folding” means
A folding scheme is a protocol where a prover and verifier take two NP instance–witness pairs(U1, W1) and (U2, W2) of the same shape (i.e., same constraint system / same A,B,C), and produce one folded pair (U, W).
Informally: the folded instance should be satisfiable only if the originals were satisfiable (except with negligible probability over the random challenge used in the fold).
Intuition: folding compresses two claims into one claim while preserving soundness.

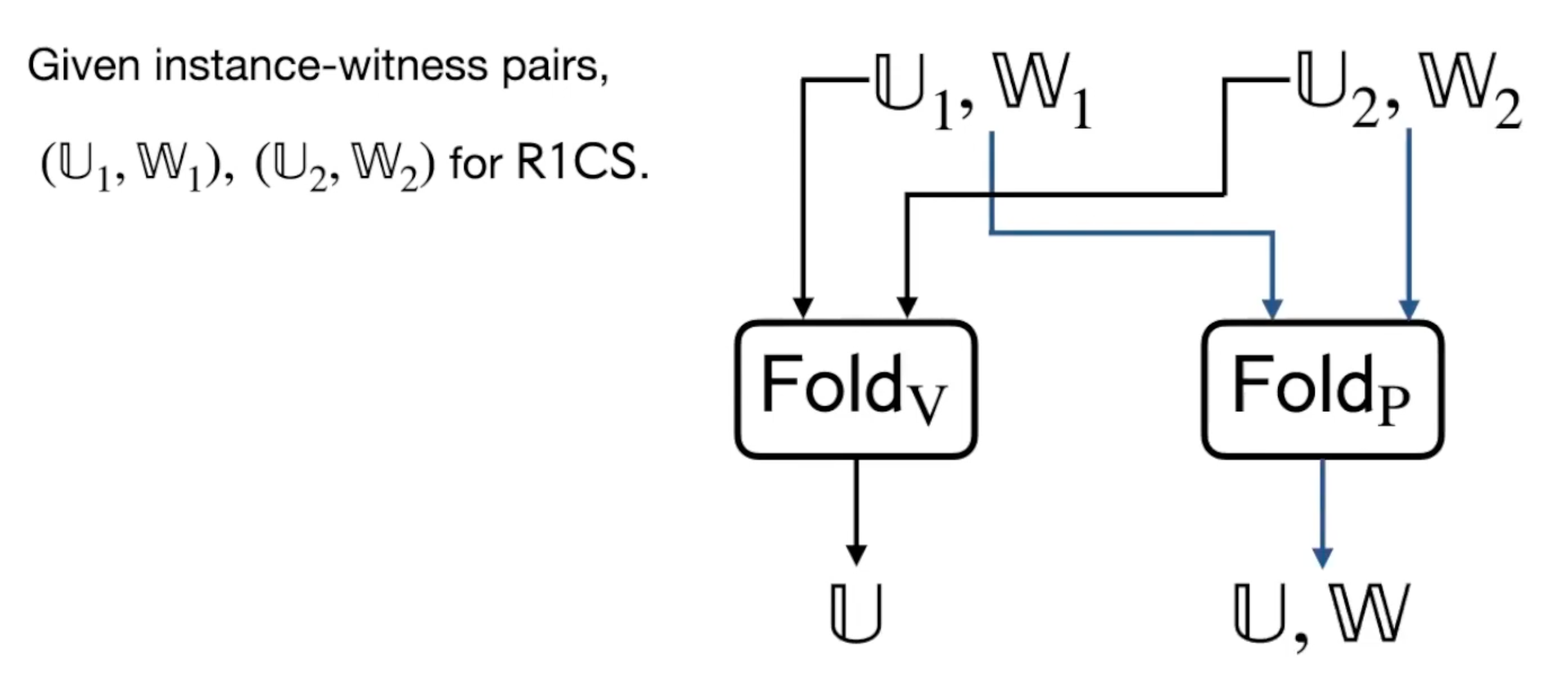

Figure 1 — Folding as a 2→1 reduction (verifier side vs prover side).
Nova builds folding for R1CS, but it first needs a variant of R1CS that folds cleanly.
Why “relaxed R1CS” exists (why vanilla R1CS doesn’t fold)
Vanilla R1CS satisfiability is:
\[(A z) \circ (B z) = (C z)\]If we try to fold by setting z := z1 + r*z2, then we expand:
The middle term is a cross-term, and it prevents linear folding from preserving satisfiability.
Nova fixes this by introducing relaxed R1CS, which adds:
- an error/slack vector
Eto absorb cross-terms, and - a scalar
uto handle constant-term drift under folding.
A relaxed R1CS instance is satisfiable if:
\[(A Z) \circ (B Z) = u * (C Z) + E, \quad Z = (W, x, u).\]Ordinary R1CS is the special case u = 1 and E = 0.
Folding relaxed R1CS (where the cross-term T comes from)
To fold two relaxed instances, the verifier samples a random challenge r, and both sides set:
u := u1 + r*u2x := x1 + r*x2
The prover computes a cross-term vector T that captures the mixed products:
Then the folded error becomes:

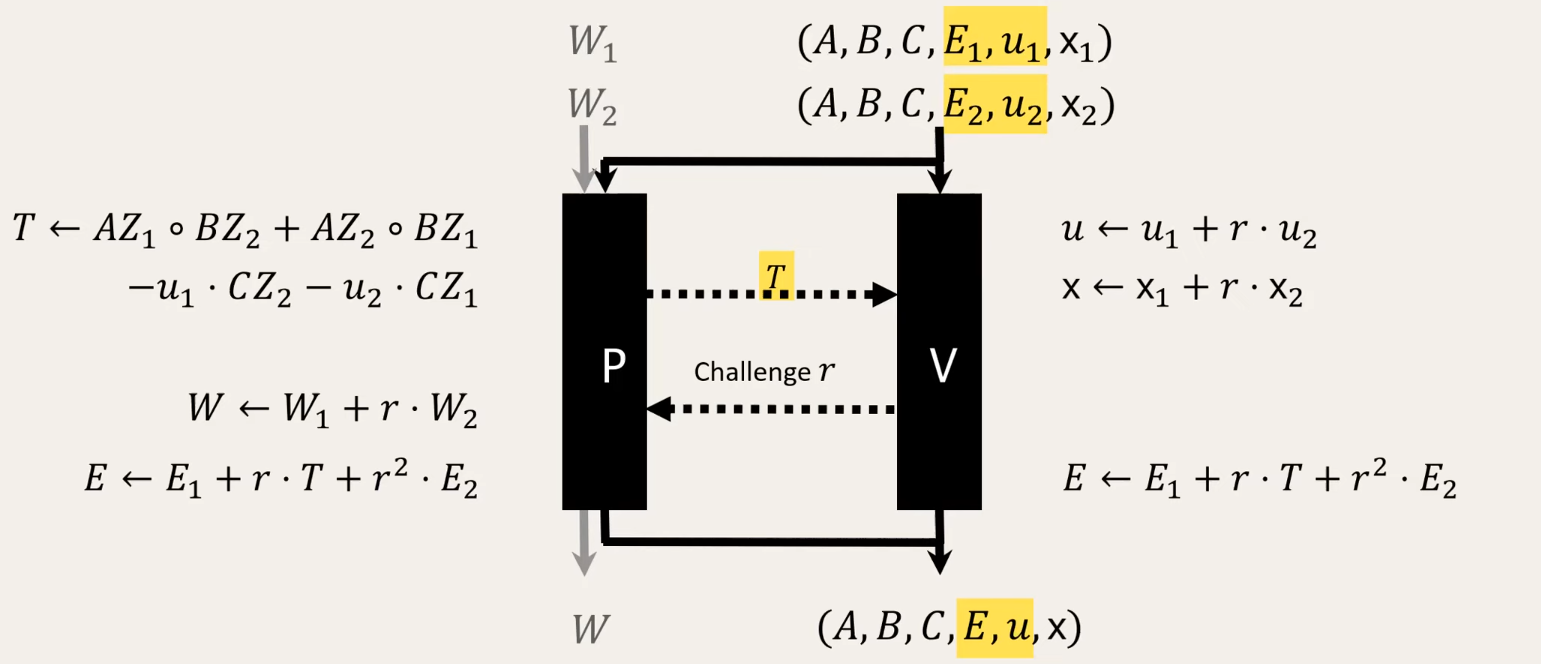

\[E := E_1 + r*T + r^2*E_2.\]Figure 2 — Interactive fold of relaxed R1CS (P computes T, V picks r).
Folding committed relaxed R1CS (succinct + hides witness pieces)
Folding shouldn’t require sending full witnesses, and we usually want (parts of) zero-knowledge. Nova therefore commits to the large witness pieces W and the slack vector E using a succinct, hiding, additively-homomorphic commitment, and treats the openings as the witness. So the instance carries commitments $\bar{W}, \bar{E}$, while the witness carries their openings.
The fold updates commitments homomorphically:
- $\bar{W} := \bar{W}+ r*\bar{W}$
- $\bar{E} := \bar{E} + r\bar{T} + r^2\bar{E}$, where $\bar{T} = Com(T)$

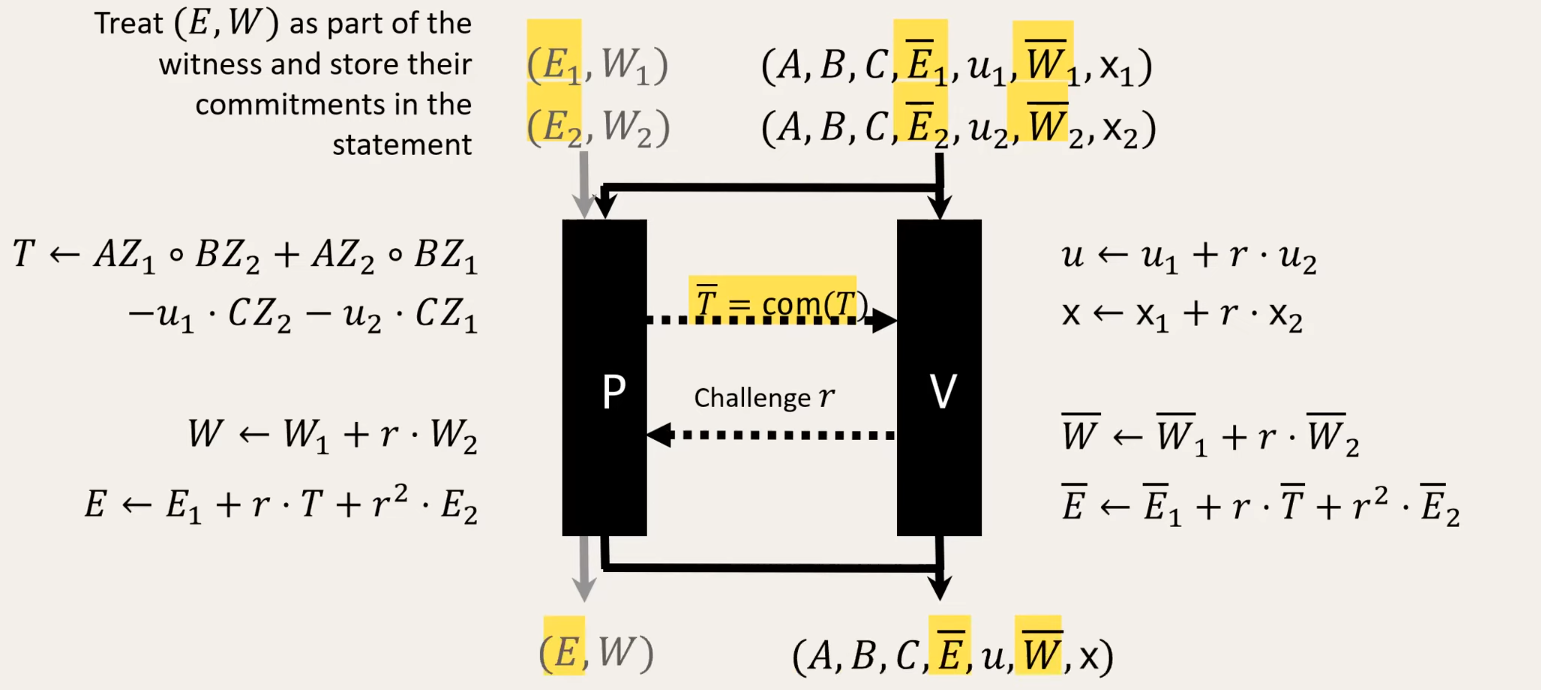

Figure 3 — Folding committed relaxed R1CS (send $\bar{T}$, fold commitments).
Making folding non-interactive (Fiat–Shamir)
The fold above is interactive because the verifier chooses r.
Nova applies the (strong) Fiat–Shamir transform to derive r from a hash of the transcript,
yielding a non-interactive folding scheme (NIFS) in the random-oracle model
(and in practice instantiating the RO with a hash function).
Transition: Now we can fold non-interactively. Next we wrap this inside an augmented step circuit F' so each iteration both computes $F(z_i)$ and folds the new step into the running accumulator.
Folding to IVC (single curve)
Nova turns a NIFS (non-interactive folding scheme) into IVC by defining an augmented step computation F' that does two things:
- compute one step of the target transition:
z_{i+1} = F(z_i) - fold the “current-step claim” into the running accumulator using the folding verifier:
U_acc,i+1 = Fold_V(u_i, U_acc,i)

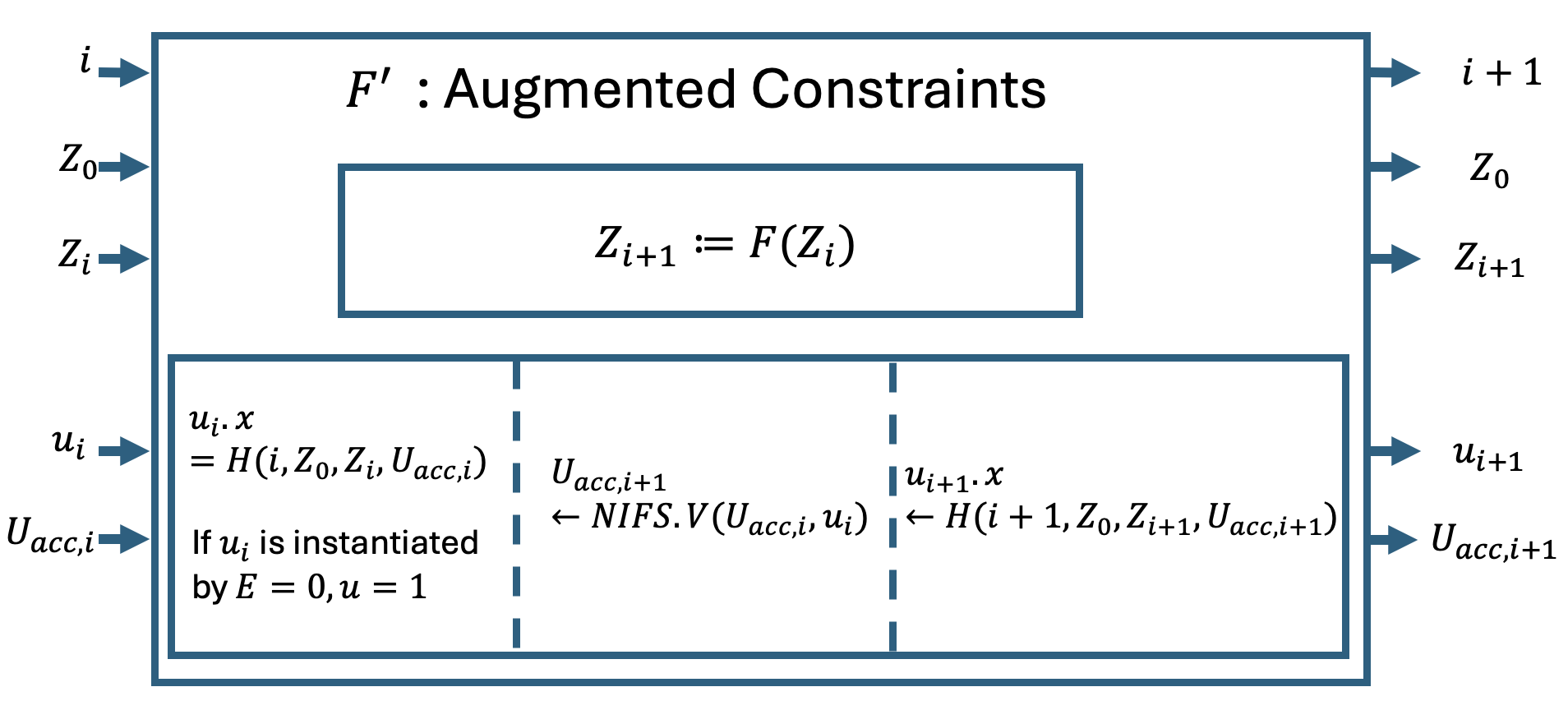

Figure 4 — The augmented step circuit F' (Nova IVC, single curve).
This is the circuit that runs at every IVC step. It takes as input the step index and current state, and it also takes the per-step instance u_i plus the running accumulator instance U_acc,i. It outputs the next state and updated proof objects.
Inputs (left):
i, z0, zi: the step counter, initial state, and current stateu_i: the “this step” R1CS instance (meant to be strict)U_acc,i: the accumulator instance encoding “all prior steps were valid”
What the circuit enforces (bottom box):
- Bind this step to the running accumulator (hash link).
It checks that the public input of the step instance matches a hash of the current transcript:
u_i.x = H(i, z0, zi, U_acc,i). This prevents mixing au_ifrom a different step or a different accumulator. - Ensure the step instance is strict.
It enforces thatu_iis an ordinary (non-relaxed) R1CS instance by requiringE = 0andu = 1. (So only the accumulator is “relaxed”; the fresh step is “honest”.) - Fold the step into the accumulator.
It runs the folding verifier inside the circuit:U_acc,i+1 = NIFS.V(U_acc,i, u_i).
Intuition: this updates the running claim so it now represents “all steps up to i are valid”. - Prepare the next step’s hash binding.
It computes the hash that the next step will check:u_{i+1}.x = H(i+1, z0, z_{i+1}, U_acc,i+1).
Top box (computation):
- Independently of folding, it computes the next state:
z_{i+1} = F(z_i).
Outputs (right):
i+1, z0, z_{i+1}(state evolution)u_{i+1}(the next step’s strict instance, with its hash-bound public input)U_acc,i+1(updated accumulator after folding)
Key takeaway: F' turns “prove all steps so far” into “prove one step + fold”, while hash links ensure steps cannot be reordered or spliced across different accumulators.
Decider (final check / compression)
After many folds, the verifier does not re-check every step. Instead, it runs a decider that checks the final accumulated instance is valid (often by wrapping it in a succinct SNARK / final proof system).

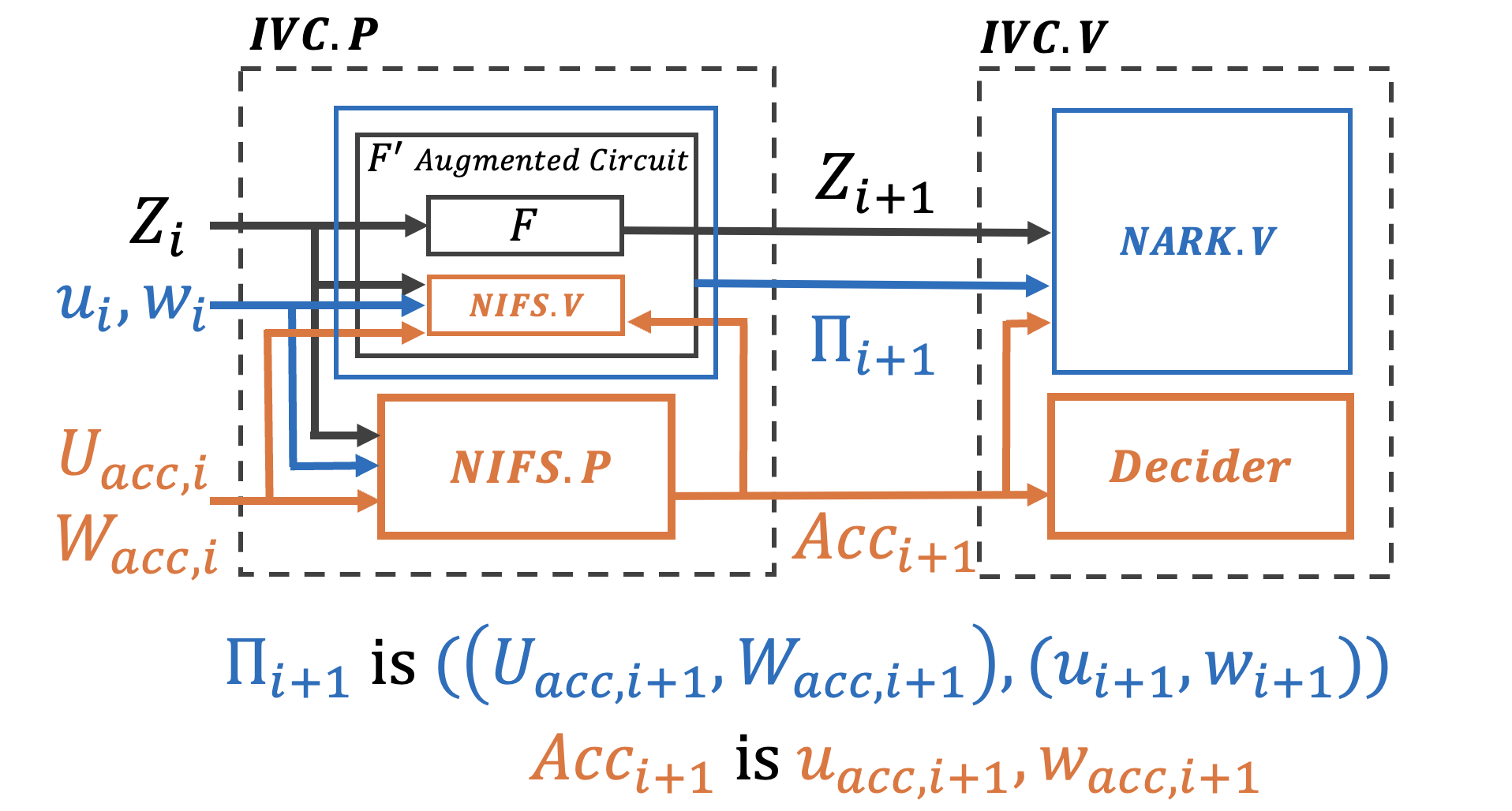

Figure 5 — Decider checks the final accumulator (and may compress to a short proof).
Nova implementation over a cycle of curves (why it helps)
Why non-native arithmetic appears
In recursion, the augmented circuit must implement parts of the folding verifier. Those include elliptic-curve commitment relations, which are naturally expressed over the curve’s base field.
But the recursive circuit is usually defined over the curve’s scalar field. So you end up trying to do base-field EC arithmetic inside a scalar-field circuit, which becomes non-native and expensive.
Figure — Two fields per curve:
- base field $F_q(E)$ = coordinates live here
- scalar field $F_r(E)$ = scalars for group operations
Cycle-of-curves idea
Use two curves $E_1, E_2$ such that their fields “swap”:
- $F_r(E_1) = F_q(E_2)$
- $F_r(E_2) = F_q(E_1)$
Then you can represent the verifier-circuit arithmetic natively by alternating which curve hosts the recursive step:
- the circuit over $F_r(E_1)$ can do arithmetic over $F_q(E_2)$ natively,
- and vice-versa.
Example cycle often used in practice: BN254 / Grumpkin.

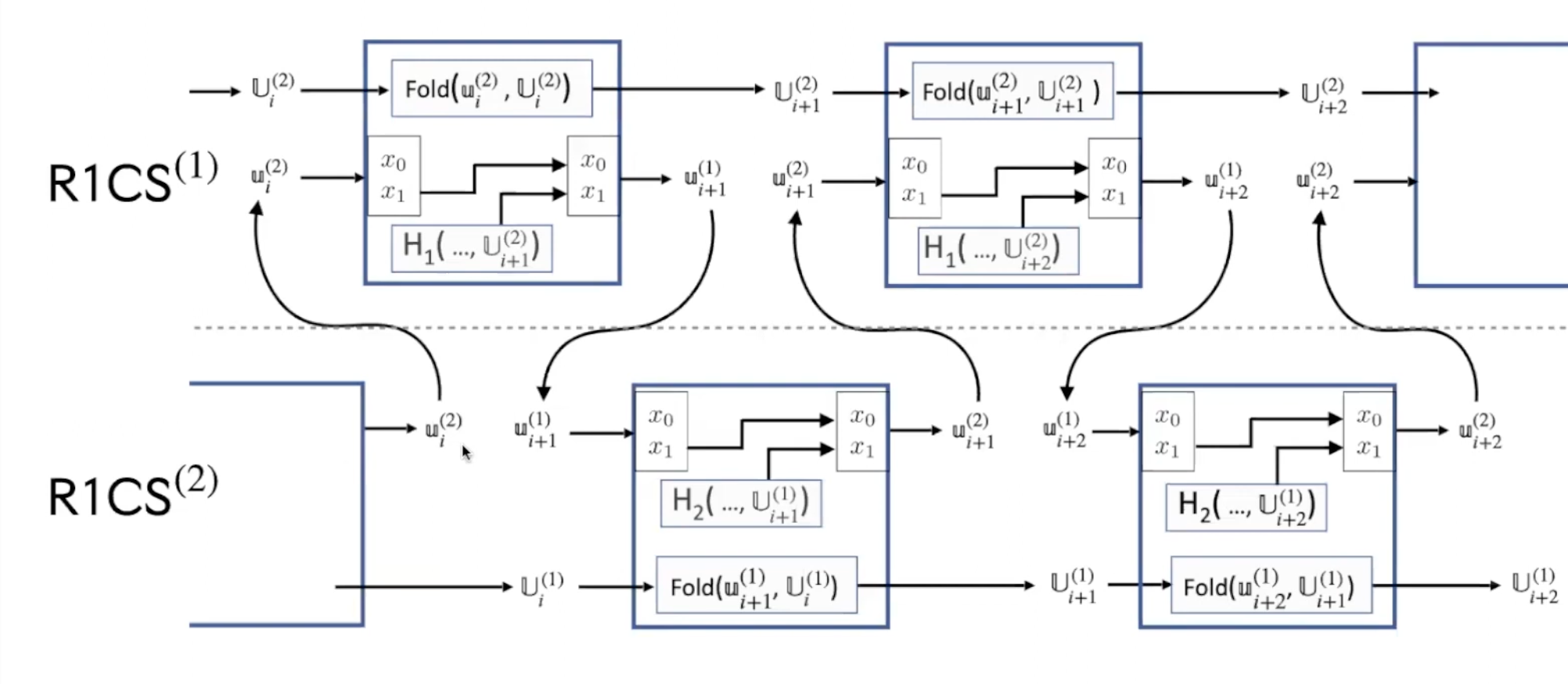

Figure 6 — Alternating recursion on a 2-cycle (each curve checks the other natively).

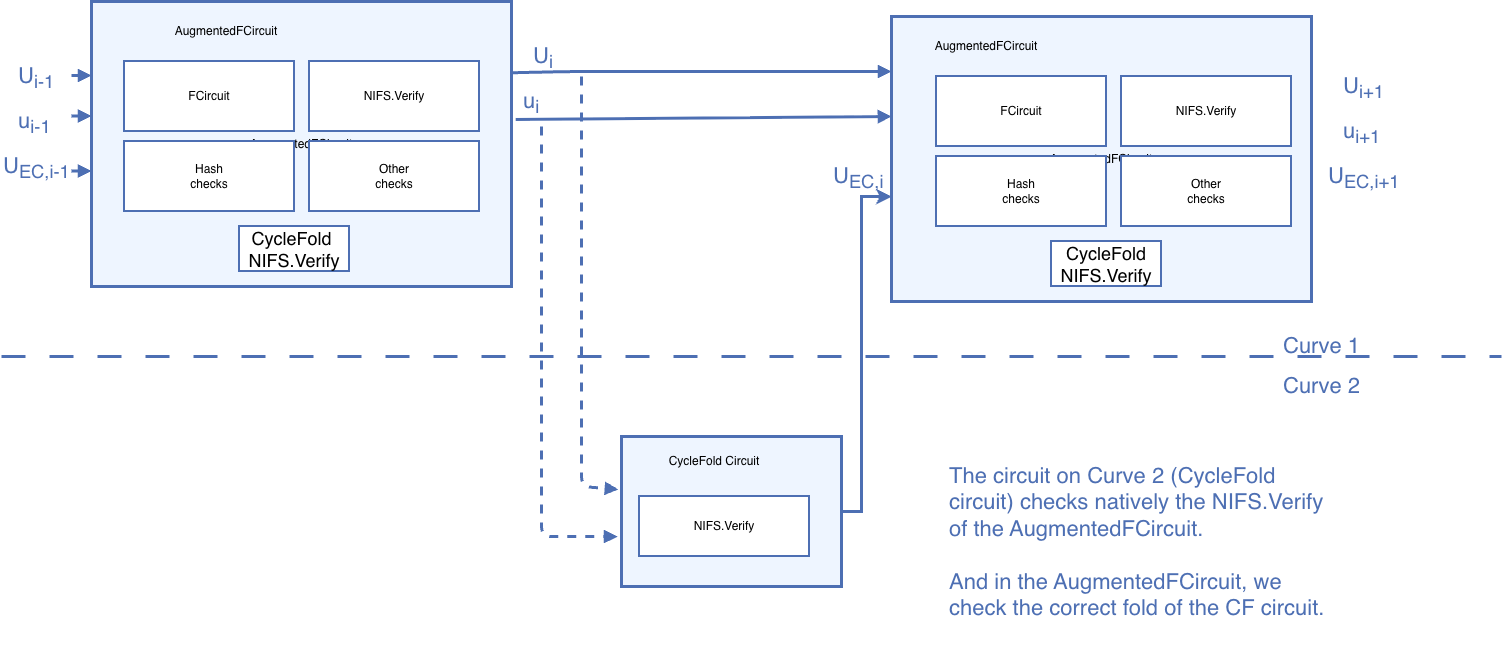

CycleFold-based Nova
CycleFold starts from the observation that folding-scheme based IVCs (Nova/HyperNova/etc.) are “basically fine on one curve” except for a few elliptic-curve operations in the verifier circuit—particularly scalar multiplication + point addition—which naturally live in the curve’s base field, not its scalar field. If you try to do these inside a circuit over the “wrong” field, you need non-native arithmetic, which can explode to “a million multiplication gates or more”.
Instead of Nova’s 2-cycle approach(which needs ~10,000 multiplication gates on both curves to encode verifier circuits),CycleFold
- builds tiny co-processor circuit C~EC~ over the scalar field of second curve E~2~, where (because of the cycle) this arithmetic becomes native for operations over 𝐸~1~’s base field.
- 𝐶~𝐸𝐶~ is small in practice: about 1,000–1,500 multiplication gates.
- sonobe implementation of cyclefold based Nova
